AISI 304 stainless steel capillary tube for medical

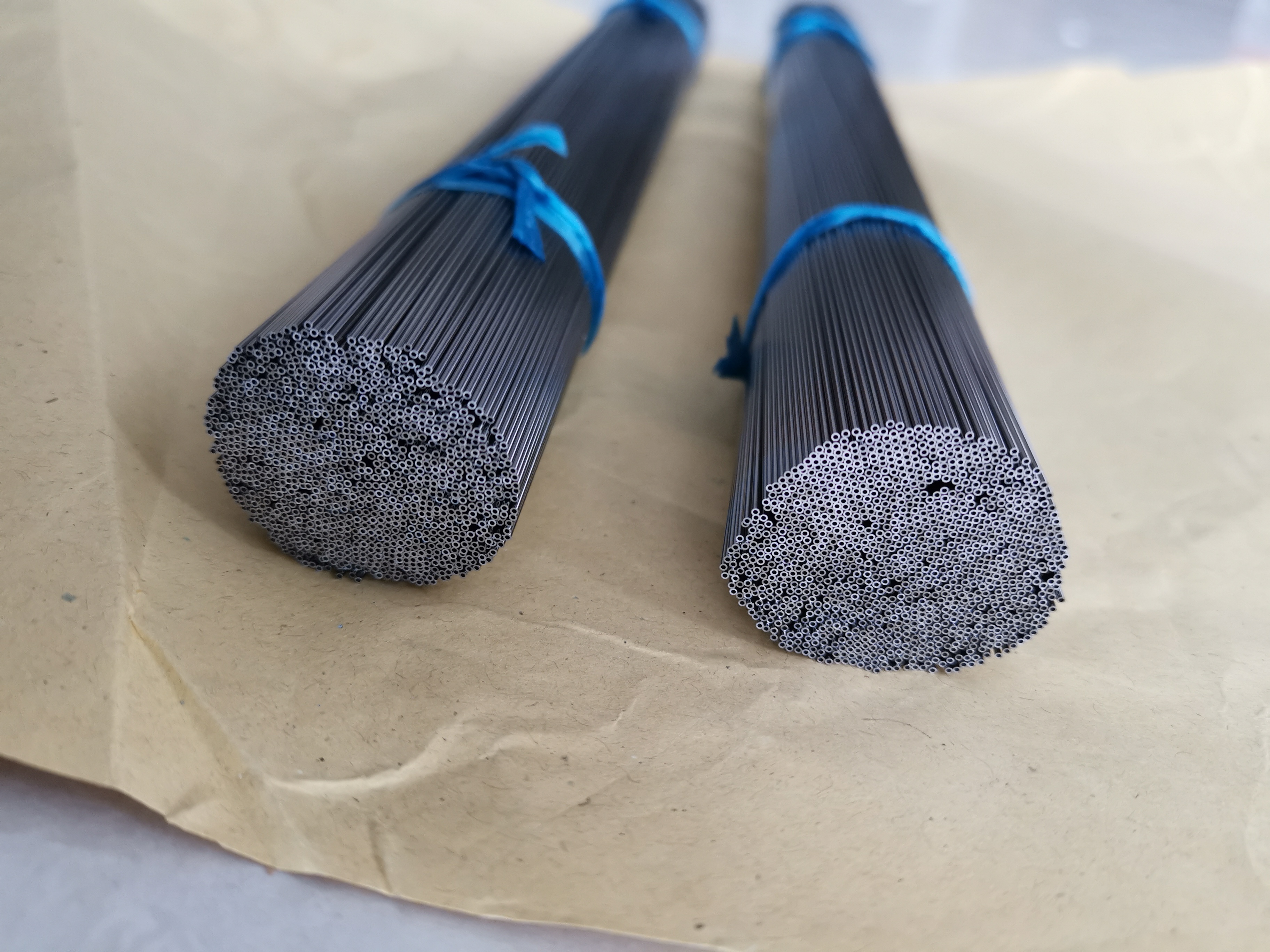

Stainless steel capillary tube

1. Standard: GB/T18705-20021
American Standard Material: TP304 TP304L TP304H TP321 TP321H TP316L TP316SS TP316Ti TP347 TP347H TP317L TP309S TP310S 904L
Russian standard Material: 08X18H10 03X18H11 10X17H13M2T 03X17H13M2 12X18H10T 08X18H10T 08X18H12
German standard material: 1.4301 1.4306 1.4541 1.4404 1.4571 1.4550
Japanese standard material: SUS304 SUS304L SUS321 SUS316L SUS316Ti SUS347 SUS800 SUS840
Double-Grade Material: 304/304L 316/316L 321/321H 347/347H
Duplex stainless steel: 2205 2304 S31803 S32750
Inconel 600, Inconel 601, Inconel 625, Inconel 725, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825,
Incoloy 901, Incoloy 925, Incoloy 926 etc.

2. Production standard:
China Standard: GB/T14975/14976/13296
American Standard: ASTM A269/A312/A213/A511/A789/A790
Japanese standard: JISG3459/3463
German standard: DIN17456/17458
European standard: EN10216-5

3. Applications:
Petroleum, chemical, pharmaceutical, food, machinery, aerospace, construction, military, hardware, gas boilers, plumbing devices, ships, power plants and other industry.
For example:
1) Medical Acupuncture with Capillary Tube,
2) High-pressure instrumentation with Capillary Tube,
3) Coal exploration  with a stainless steel capillary pipe coil
4) Thermostat  with Capillary Tube
5) Beer machine  with stainless steel Capillary Tube
6) Drinking water equipment with stainless steel Capillary Tube
7) Danfoss expansion valve with stainless steel Capillary Tube

4. Specifications:
Outer diameter :0.3mm-10mm     Tolerance:0.005mm-0.01mm
Wall thickness :0.08mm-1.5mm    Tolerance :0.01mm-0.02mm
Length :10mm-8000mm each piece
Hardness:150HV-450HV
