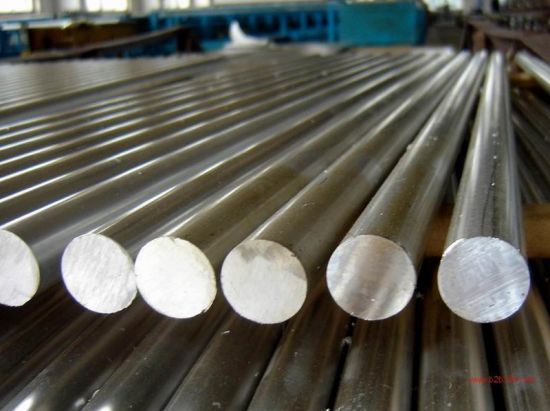

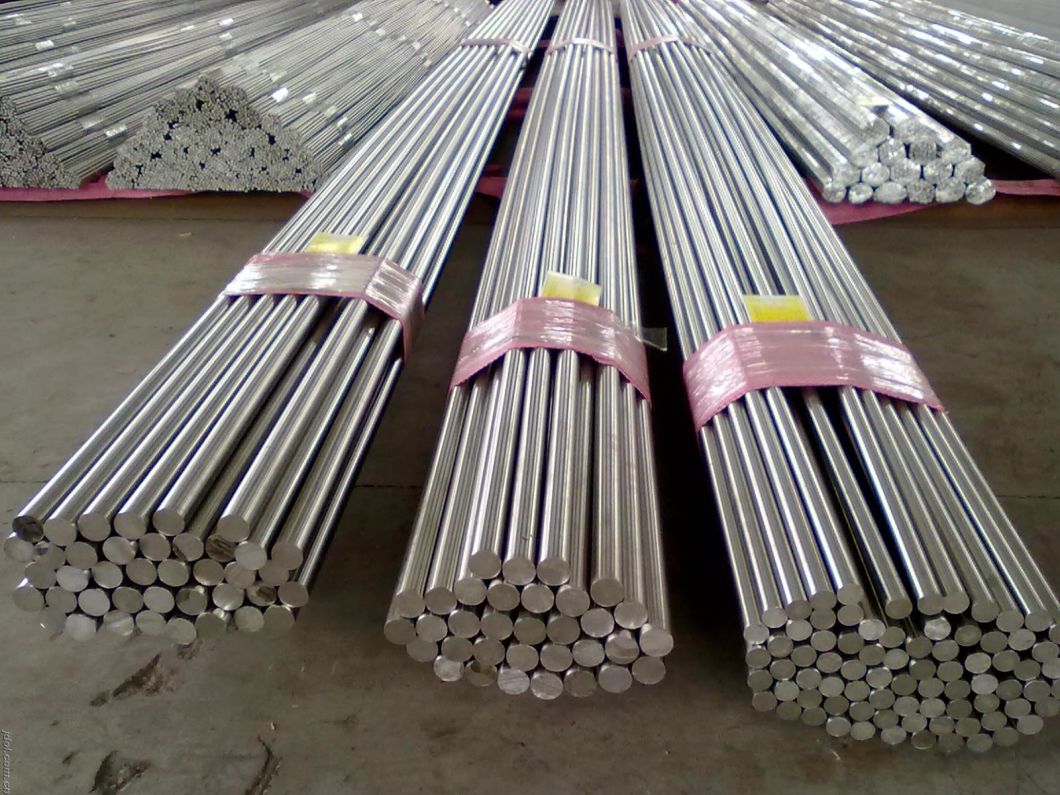

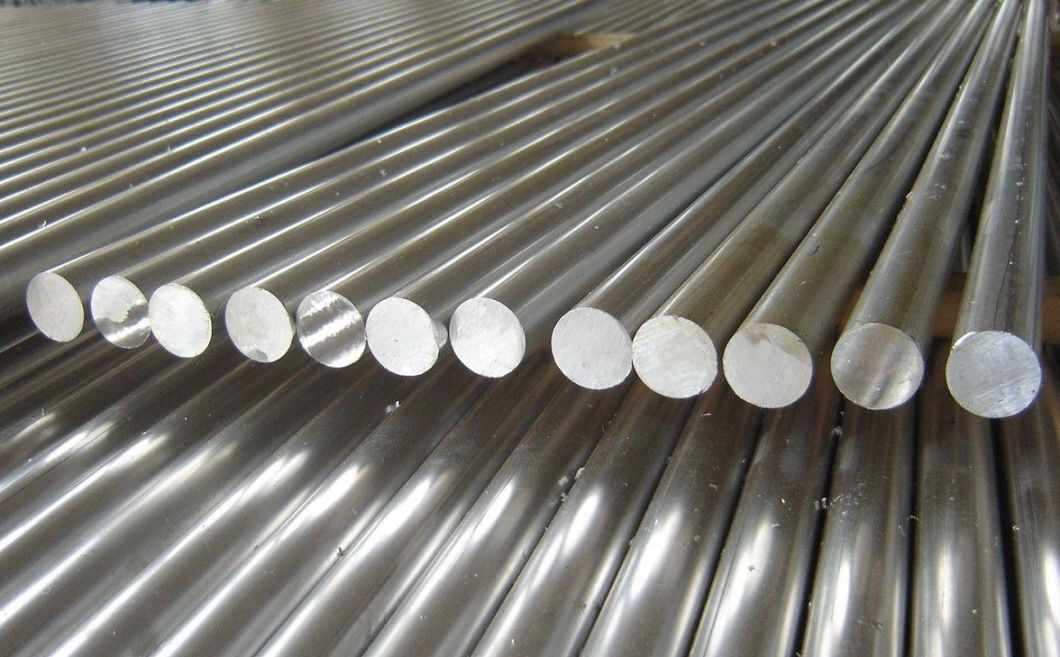

2205 Duplex Stainless Steel Bar
Dia: 1.0-400mm
Length: 3M - 12M
Condition: Annealed, pickling, grinding, polishing.
DESCRIPTION
Avesta Sheffield 2205 is a ferritic-austenitic stainless steel which combines many of the beneficial properties of both ferritic and austenitic steels. As a result of high chromium and molybdenum contents, the steel has very good pitting and uniform corrosion resistance to stress corrosion cracking as well as high mechanical strength.
2205 has good weldability and can be welded using most of the welding techniques for stainless steels. Due to the balanced composition, when welded correctly, the heat affected zone contains sufficient austenite to avoid the risk of localized corrosion. The chemical composition of 2205 is balanced to give a microstructure containing roughly equal amounts of ferrite and austenite.
DESIGN FEATURES
High strength.
Low thermal expansion and higher heat
Conductivity than austenitic steels.
High resistance to stress corrosion cracking,
Corrosion fatigue and erosion.
High uniform corrosion resistance.
High pitting and crevice corrosion
Resistance.
Good sulfide stress corrosion cracking
Resistance.
TYPICAL APPLICATIONS
Heat exchangers, tubes and pipe for production and handling of gas and oil
Heat exchangers and pipes in desalination plants
Pressure vessels, pipes, tanks and heat exchangers for processing and transport of various chemicals
Pressure vessels, tanks and pipes in process industries handling chlorides
Rotors, fans, shafts and press rolls where the high corrosion fatigue strength can be utilized
Cargo tanks, piping and welding consumables for chemical tankers
TENSILE REQUIREMENTS
Tensile Strength (KSI) 65
Yield Strength (KSI) 90KSI can be converted to MPA (Megapascals) by multiplying by 6.895.
